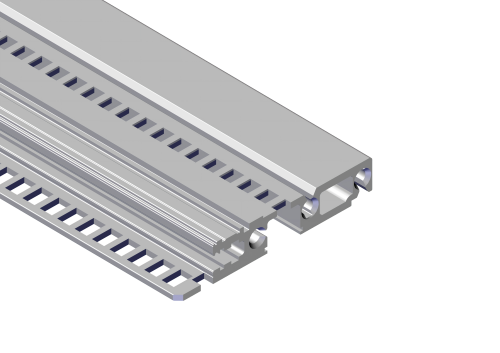

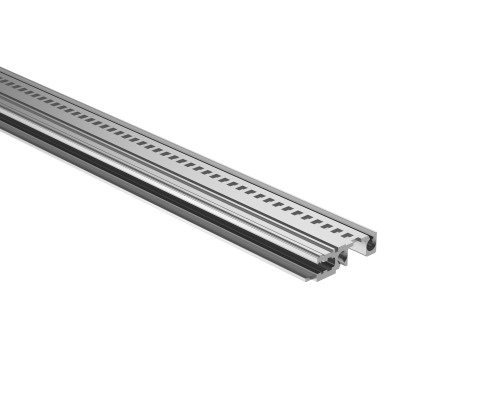

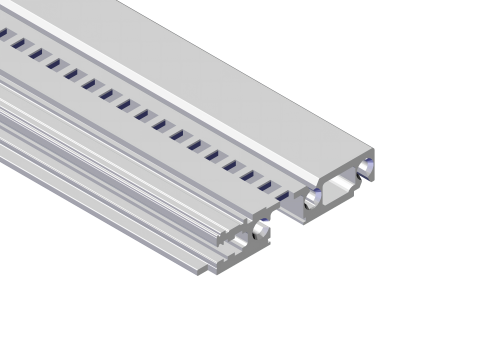

Horizontal Rails are structural components designed for 19-inch subracks, Eurocard systems, card cages, and modular electronic enclosures.
About this
product
The horizontal rail provides reliable mechanical support and positioning for PCB assemblies, plug-in modules, card guides, and other subrack components. It helps maintain the structural integrity and dimensional stability of the subrack while providing a secure mounting interface for internal components.
Available in different materials, dimensions, profiles, and mounting configurations,Horizontal Rails can be supplied as standard components or manufactured according to customer drawings.
Materials
6061 / 6063 / 5052
Surface Finish
Our standard surface finish is anodized, if you need stock products and fast delivery.
- Anodizing
- Powder coating
- Zinc plating
- Nickel plating
- Chromate conversion
- Black coating
- Natural aluminum finish
For custom projects, surface finish can be specified according to the customer’s technical requirements.

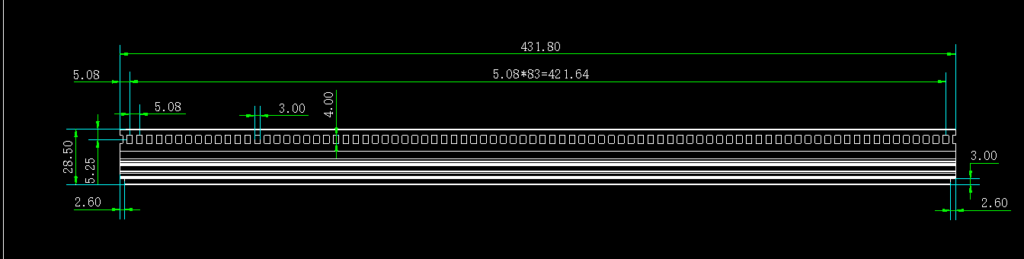

Dimension
42HP/63HP/84HP/Customized length
Mounting Pitch/Hole spacing
5.08 mm (1 HP) horizontal pitch
84 HP = 426.72 mm usable width
Get in touch
Looking for reliable 19-inch subrack accessories or a custom mechanical solution? Contact us for product information, technical support, OEM/ODM manufacturing, and quotation requests.
Finding a replacement or custom component for an existing subrack can be difficult—especially when the original part is discontinued, difficult to identify, or no longer available.
YiHui helps you replace, upgrade, and customize mechanical components for 19-inch subrack systems.
Send us your part number, drawing, dimensions, or even a photo. We can help identify the component and provide a suitable replacement or custom solution.
