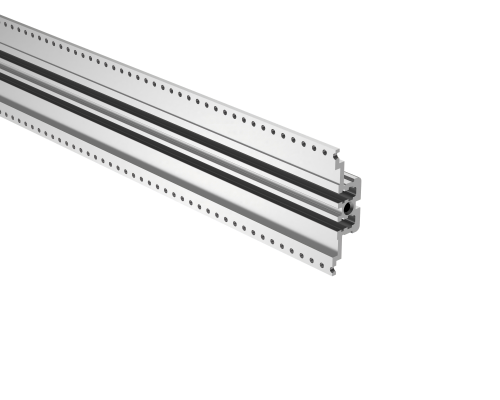

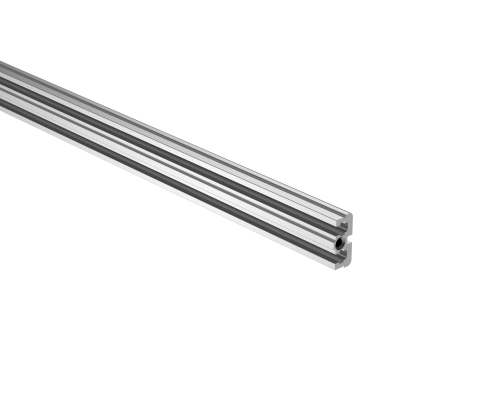

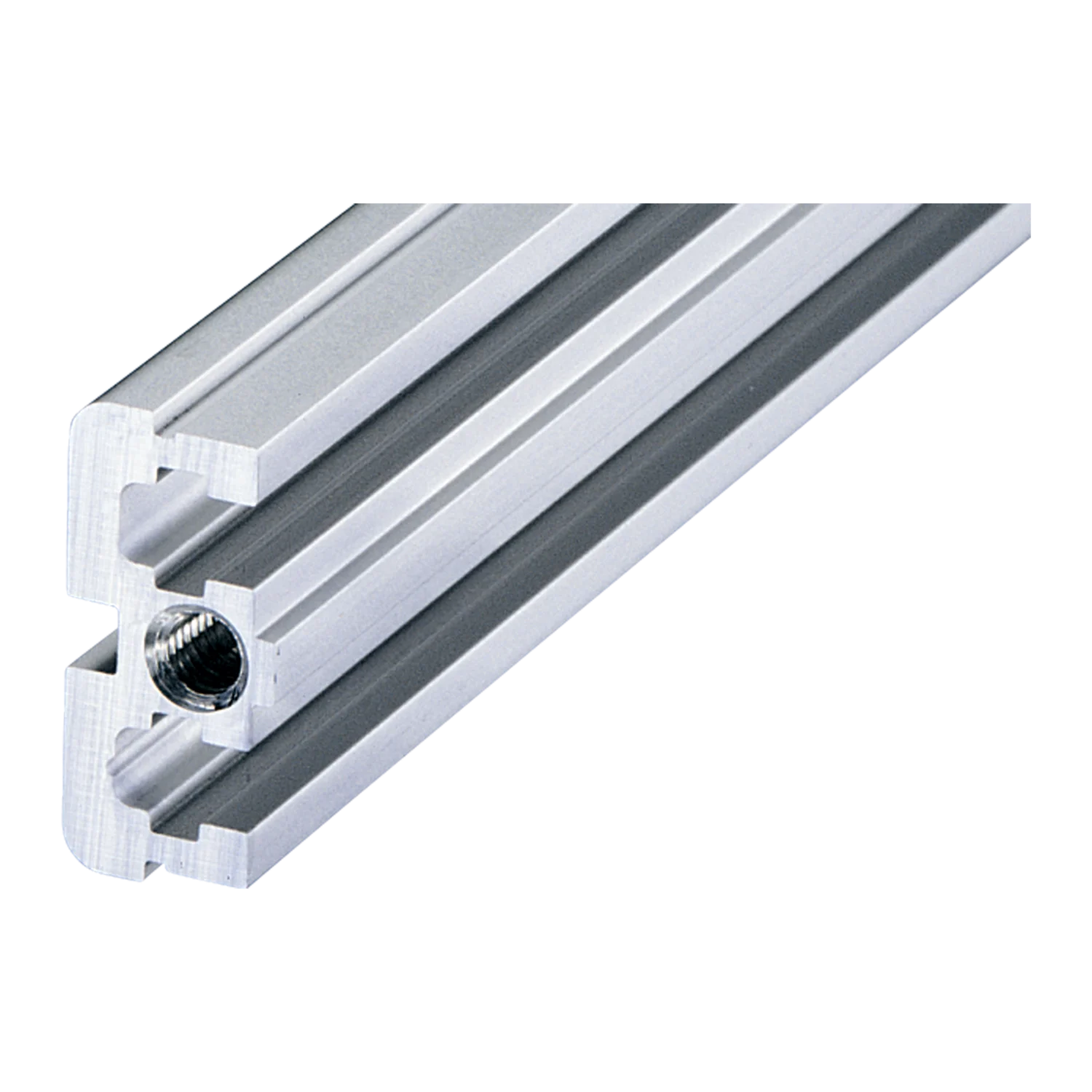

Middle Horizontal Rails are structural components designed for 19-inch subracks, electronic chassis, Eurocard systems, and modular electronic enclosures.
About this
product
Installed between the upper and lower sections of a subrack, the middle horizontal rail provides additional mechanical support, PCB positioning, and structural reinforcement. It can also serve as a mounting interface for PCB card guides, module supports, and other internal subrack accessories.
Middle horizontal rails are particularly useful in 6U and larger subrack assemblies, where additional internal support is required for PCB modules and mechanical components.
Material
Aluminum Extruded 6063/6061
Typical Applications
6U 19-Inch Subracks
A major application is 6U subrack construction.
The middle horizontal rail can divide the available vertical space into two functional areas and provide additional support for PCB assemblies.
Surface Finish
Anodizing
Chromate/ Alodine
Get in touch
Looking for reliable 19-inch subrack accessories or a custom mechanical solution? Contact us for product information, technical support, OEM/ODM manufacturing, and quotation requests.
Finding a replacement or custom component for an existing subrack can be difficult—especially when the original part is discontinued, difficult to identify, or no longer available.
YiHui helps you replace, upgrade, and customize mechanical components for 19-inch subrack systems.
Send us your part number, drawing, dimensions, or even a photo. We can help identify the component and provide a suitable replacement or custom solution.
