PCB extractor Handles are designed to provide controlled mechanical leverage for the safe and convenient removal of plug-in pcbs and electronics modules from 19inch subracks and card cages.
The handles help reduce extraction force, protect PCB assemblies and backplane connectors, and simplify module maintenance in industrial, railway, telecom, test and measurement, and other modular electronic systems.
These Handles provide controlled mechanical leverage for both inserting and removing plug-in modules from 19-inch subracks.
Performance & Compliance
Hot-Swap Compatible Design
IEC 60297-3-102
Mechanical Coding for Error Prevention
Standard: GB/T 7141-2008
Test Condition: 90°C for 6 hours
Low-Temperature Embrittlement
Standard: GB/T 5470-2008
Test Temperature: -55°C
Flammability
Standard: UL 94 V-0
Railway Fire Performance: EN 45545-2
Fire Safety
Standard: EN 45545-2:2013+A1:2015
RoHS Compliance
Directive: 2011/65/EU

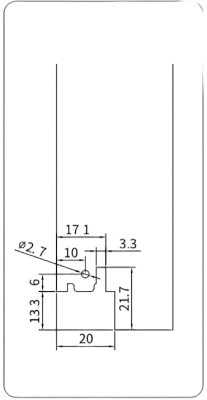

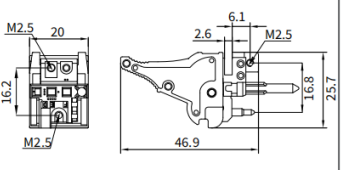

Material & Finish
Main Body: PC (Polycarbonate)
Bracket: Zinc Alloy with Nickel Plating
The polycarbonate body provides good mechanical strength, dimensional stability, and resistance to temperature variations. The nickel-plated zinc alloy bracket provides a durable and rigid mounting structure for reliable operation.
Applications:
Railway Electronics
Train control, signaling, communication, monitoring, and diagnostic equipment.
Industrial Automation
Industrial controllers, data acquisition systems, and modular control equipment.
Telecommunications
Communication modules, network equipment, and electronic infrastructure.
Test & Measurement
Modular instruments and electronic test systems.
Industrial Computing
Embedded computers, control platforms, and data processing equipment.
What is a PCB extractor?
A PCB extractor is a mechanical component designed to assist with removing a PCB or plug-in module from a subrack, particularly when the module is tightly connected to a backplane.
What is the difference between a PCB extractor and an injector/extractor handle?
A PCB extractor generally refers to a mechanism used for extraction, while an injector/extractor handle is designed to assist with both insertion and removal.
Can the extractor handle be customized?
Yes. Dimensions, mounting configuration, materials, colors, and other mechanical features can be customized according to drawings or samples.
What subracks can PCB extractor handles be used with?
They can be designed for 19-inch subracks, Eurocard systems, and other modular electronic platforms according to the required mechanical dimensions.
Can you manufacture according to our drawing?
Yes.we can manufacture customized extractor handles based on 2D drawings, 3D CAD files, samples, or technical specifications.
