DIN 41612 / IEC 60603-2 Eurocard Connectors
About this
product

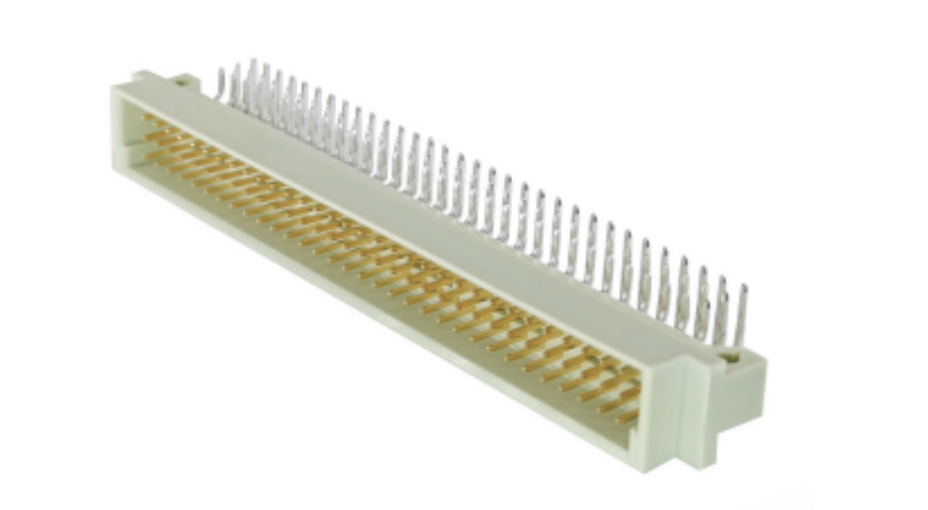

DIN 41612 connectors, also known as Eurocard connectors, are standardized electrical connectors designed primarily for modular electronic systems. They provide the electrical interface between plug-in PCBs and backplanes in systems such as 19-inch subracks, Eurocard systems, industrial controllers, telecom equipment, railway electronics, and test systems.
The connector is mounted on the PCB, while the corresponding mating connector is mounted on the backplane. When the PCB is inserted into the subrack, the two connectors mate and establish the electrical connection.
Common Types
DIN 41612 connectors are available in different contact configurations and sizes, including:
- Type A
- Type B
- Type C
- Type D
- Type E
- Type F
Different versions provide different numbers and arrangements of contacts and are selected according to the electrical and mechanical requirements of the system.
Typical Applications
DIN 41612 / Eurocard connectors are commonly found in:
Railway Electronics
- Train control systems
- Signaling equipment
- Communication systems
- Monitoring equipment
Telecommunications
- Network equipment
- Data transmission systems
- Communication modules
Industrial Automation
- PLC systems
- Industrial controllers
- I/O systems
- Data acquisition equipment
ATE & Test Equipment
- Automated test equipment
- Measurement systems
- Semiconductor test equipment
19-Inch Subracks
- 3U Eurocard systems
- 6U Eurocard systems
- Modular electronic chassis
Get in touch
Looking for reliable 19-inch subrack accessories or a custom mechanical solution? Contact us for product information, technical support, OEM/ODM manufacturing, and quotation requests.
Finding a replacement or custom component for an existing subrack can be difficult—especially when the original part is discontinued, difficult to identify, or no longer available.
YiHui helps you replace, upgrade, and customize mechanical components for 19-inch subrack systems.
Send us your part number, drawing, dimensions, or even a photo. We can help identify the component and provide a suitable replacement or custom solution.
